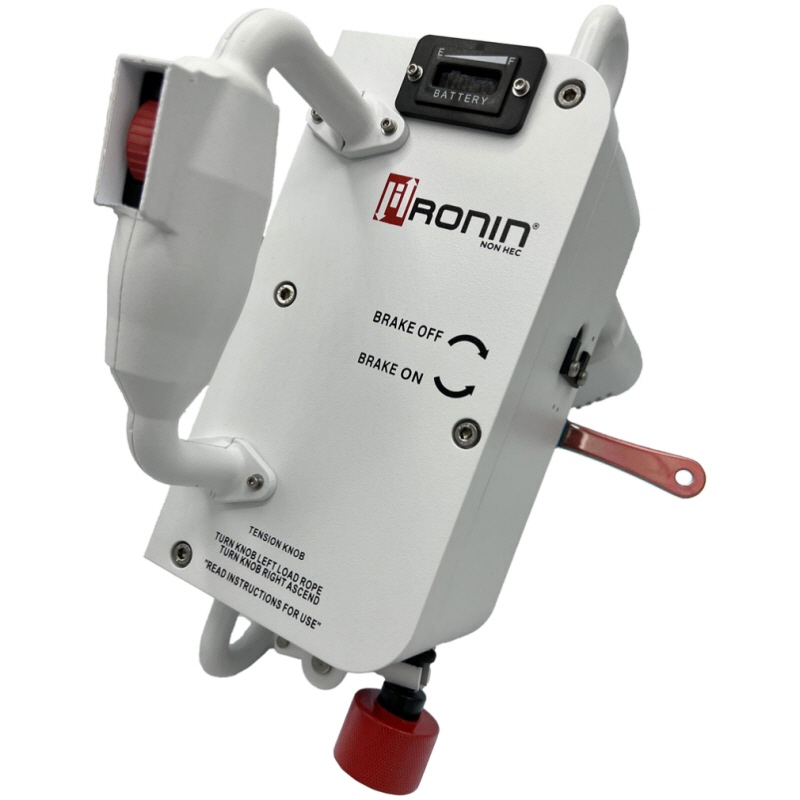

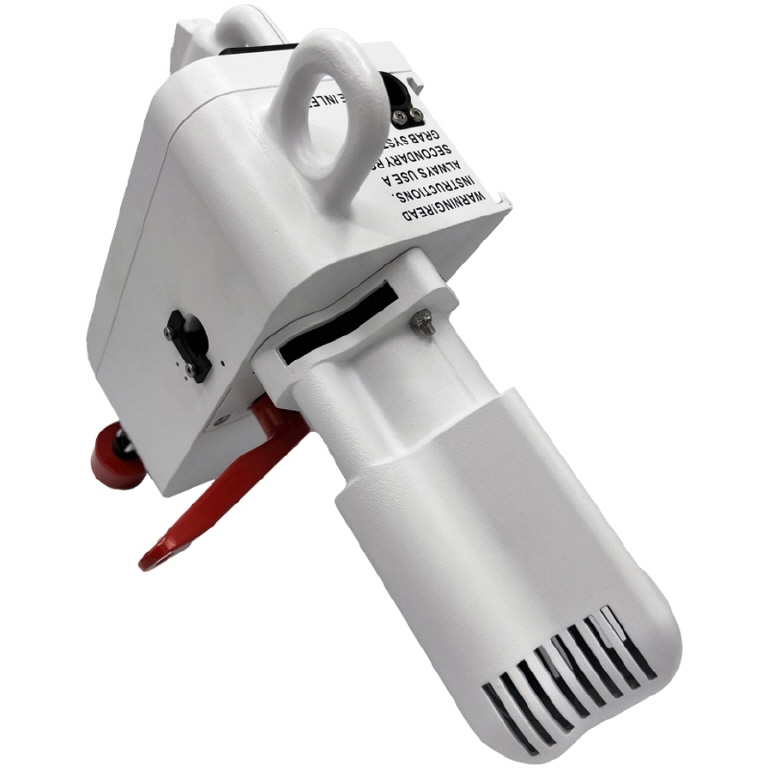

Ronin Lift Non-HEC
Part # 2805-11 APWR-W
The Ronin Lift Non-HEC is a color-differentiated version of the Ronin Lift APWR for companies that want to keep equipment for people separate from that for loads.
The Ronin Lift Non-HEC is designed to move heavy loads in difficult environments to get necessary work done. The winch can be used for lifting, pulling or moving on an inclined rope. The versatility of the Ronin Lift also allows it to be used with pulleys, which means it can handle up to 725 kg of load with a 4:1 ratio. Both attachment points of the Ronin Lift offer a breaking load of 2268 kg for safe working.
The winch is lightweight (10.3 kg), comfortable, fast and easy to use. The Ronin Lift provides controlled acceleration via a thumbwheel that variably adjusts speed - up to the maximum safe working load of 181 kg. The remote control allows the winch to always be operated outside of a potential danger zone.

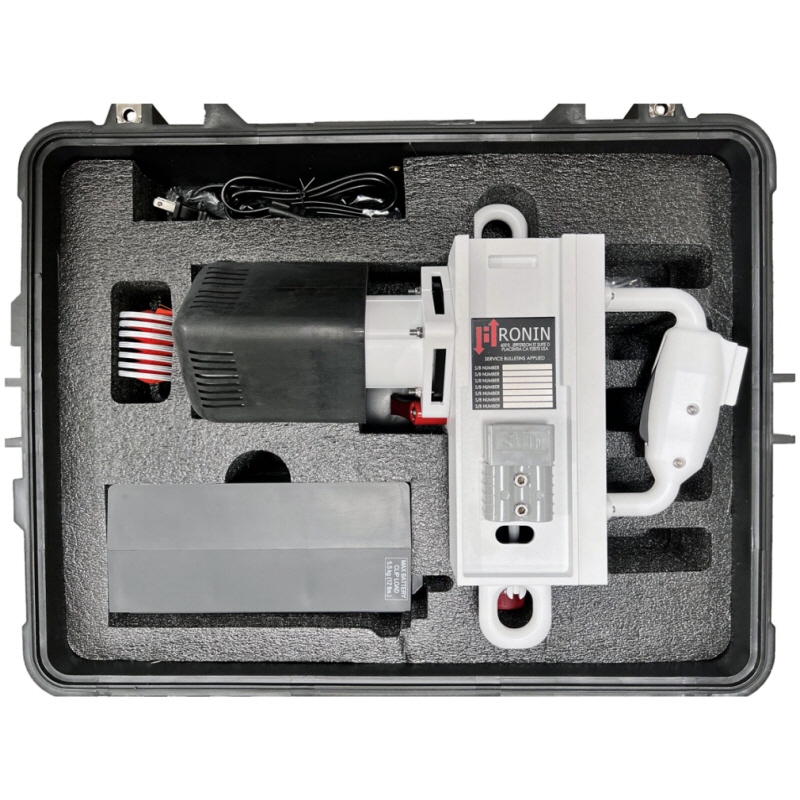

products contents
• 1 Ronin Non-Hec Ascender with Reverse Function and Anti-Panic Handle
• 1 Wireless Remote
• 1 Bollards at rope inlet and outlet opening
• 1 Li-Ion Battery
• 1 Charger 220 Volt
• 1 Hard Case
• 1 Rope Brush
• 1 Rubber Motor Protector
• 1 Clamping rubber band for fixing the brake lever in the reverse function
• 1 Pefect Burn Kit
- specifications
| Category: | Battery Powered Rope Ascender |

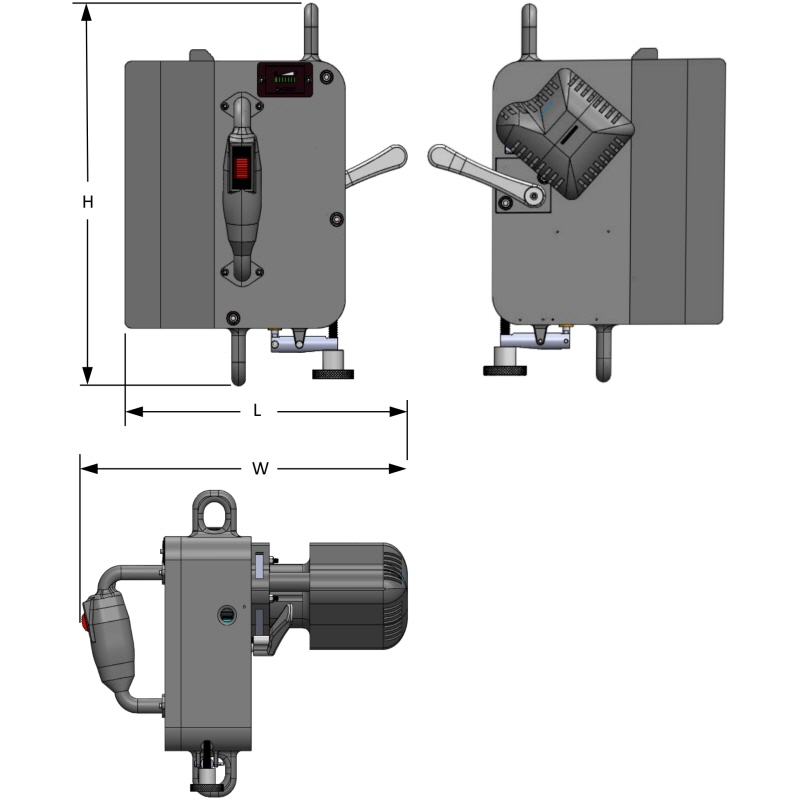

| Length (L): | 28,8 cm |
| Width (W): | 39,1 cm |
| Height (H): | 33,9 cm |
| Weight: | 10,3 kg |
| Construction: | Aluminum, Stainless Steel and Bronze |
| Finish: | white |
| Operating Temperature Range: | -4°F - 120°F (-20°C to +49°C) |
| Ingress Protection (IP): | IP54 |
| Battery Type: | 28 VDC Lithium Ion Rechargeable |
| Battery Capacity: |
3.5 min. non-stop with 181 kg load (107 m rope) 7.0 min. non-stop with 90 kg load (213 m rope) |
| Battery Re-Charge Time: | ~ 2.5 hours |
| Rope Type: | 10 - 13 mm Kernmantle Static Rope EN 1891 |
| Rope Loading: | End Feed |
| Ascent Speed: | Variable (0.15 to 0.46 m/sec.) |
| Descent Method: | Gravity Feed with manual brake |
| Descent Speed: | 1.07 m/sec. with a maximum load of 181 kg |
| Climbing method: | single rope |
| Secondary Safety: | Secondary Lock Out Feature (Hands Free) |
| Max Working Load: | 181 kg |
| Product Certifications: | CE and ANSI |
| Reverse Functionality: | For Angled Ascents, winching applications, removing rope from the system |
