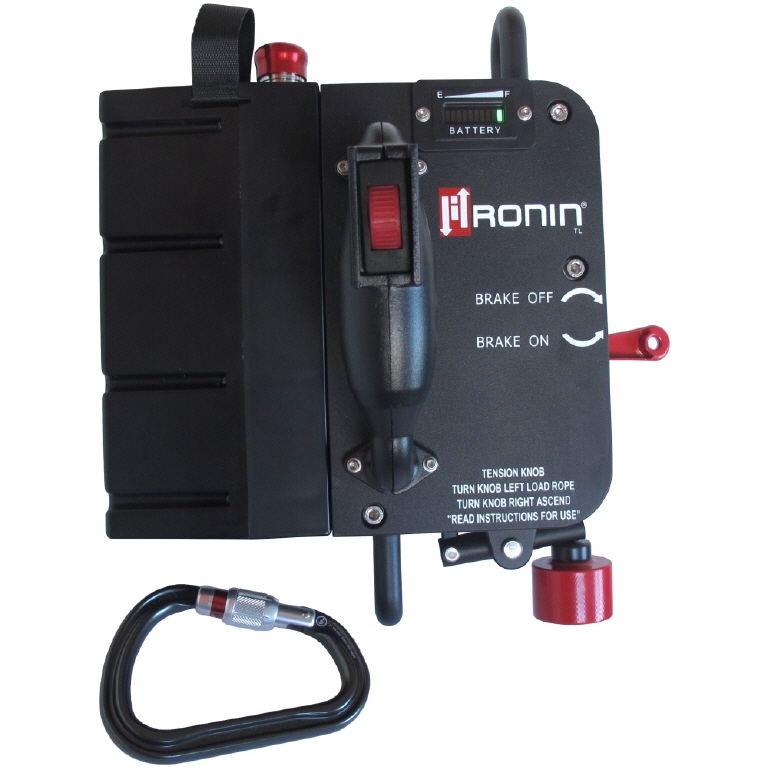

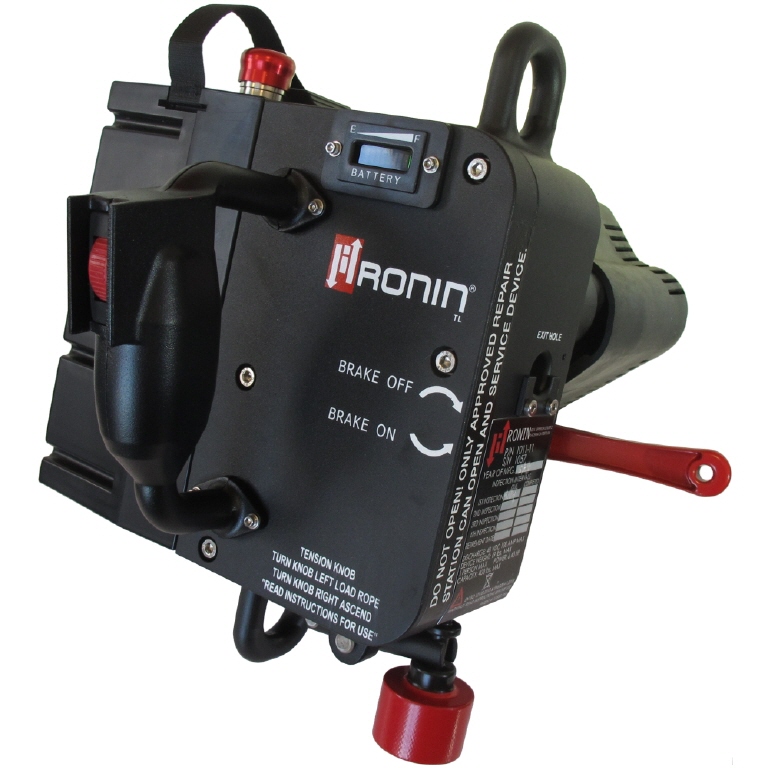

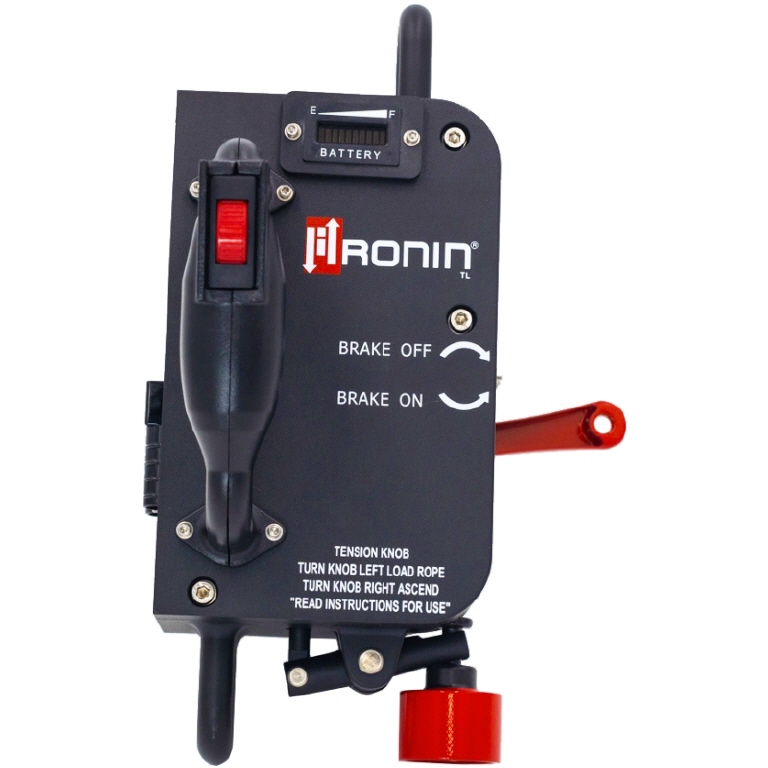

Ronin Titan Lift
Part # 1011-11
This winch is one of the lightest and smallest machines in its power class on the market. Despite its extremely small size and light weight (9,15 kg), it can move the same load or people in difficult environments, identical to the Ronin Lift APWR.
In addition, the Ronin Titan Lift has also increased wear resistance by making parts exposed to rope abrasion out of stainless steel. This makes this winch recommended for users who subject the winch to extreme wear (e.g., heavily soiled ropes, heavy loads...)
The Ronin Titan Lift is comfortable, fast and easy to use. It provides controlled acceleration via a thumbwheel that variably adjusts speed - up to the maximum safe working load of 181 kg.

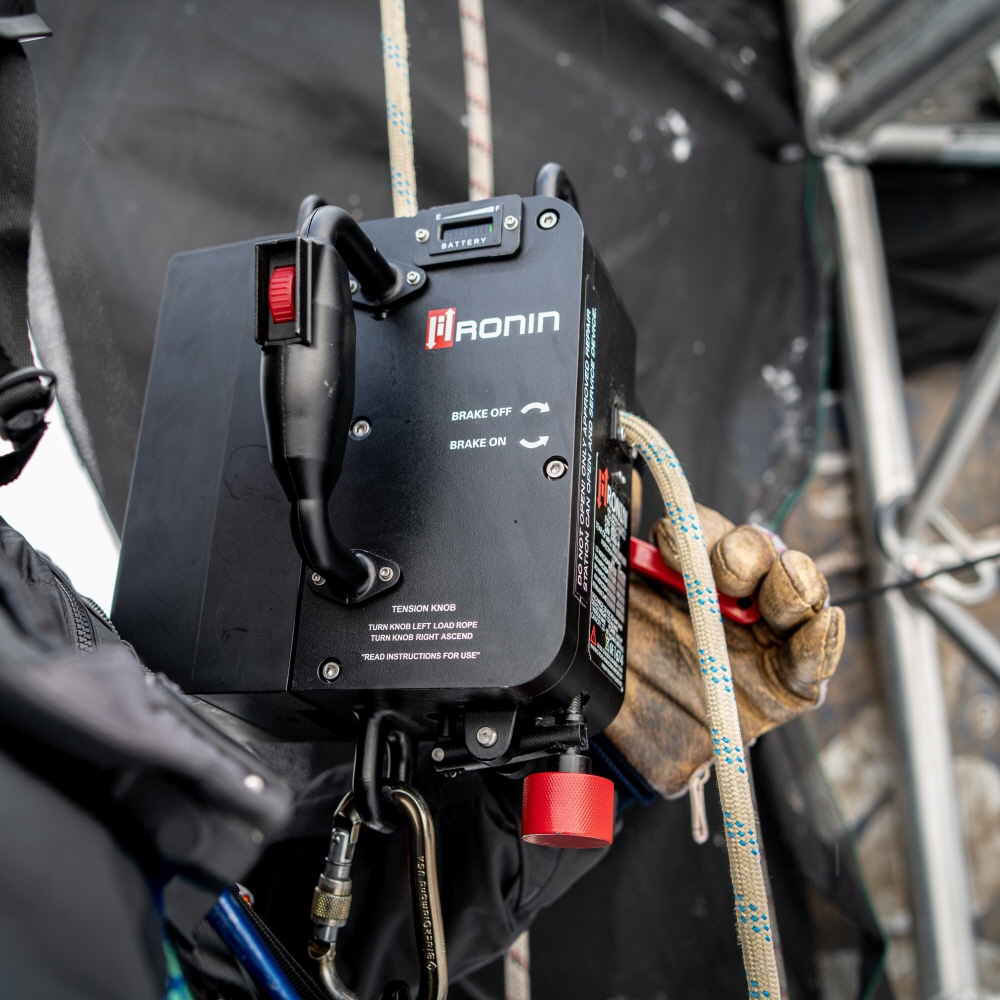

The winch can lift, pull, or be moved on a diagonally tensioned rope. The versatility of the Ronin Titan Lift allows the use of pulleys up to a 4:1 ratio, which means it can hold up to 725 kg of load.
The Titan lifts have the following advantages over the APWR lifts:
- less weight (9.15 kg instead of 10.3 kg)
- smaller in size
- Emergency-off switch on the battery
- Fastening loop/retaining strap on the battery
- Battery indicator on the battery
- Better EMI immunity of the control unit and therefore highly recommended when working in environments of strong electromagnetic radiation (radio masts, power poles).
products contents
• 1 Ronin TL Ascender with Reverse Function and Anti-Panic Handle
• 1 Wireless Remote
• 1 Bollards at rope inlet and outlet opening
• 1 Li-Ion Battery
• 1 Charger 220 Volt

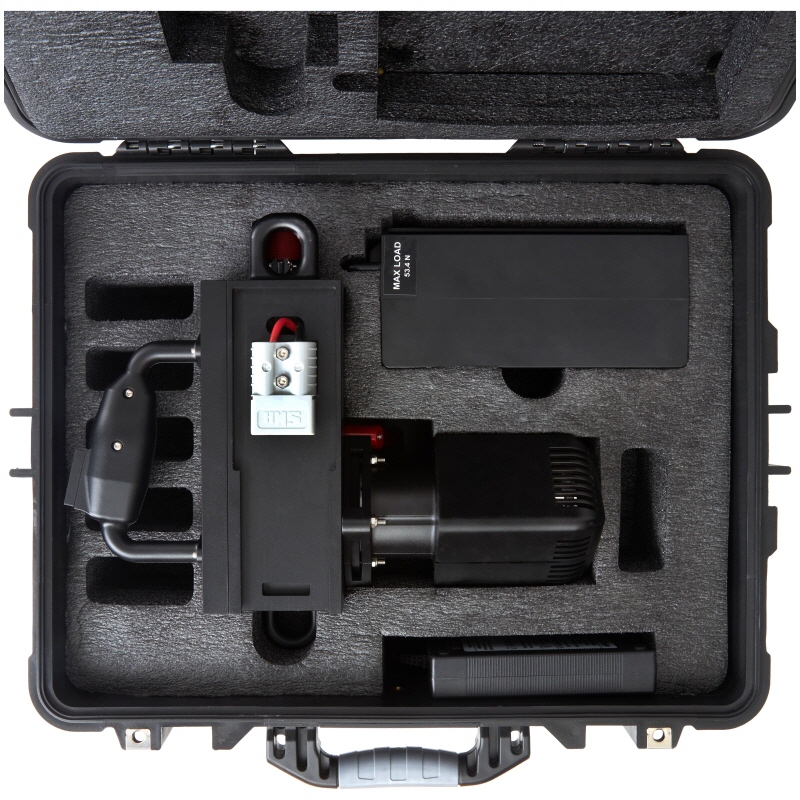

• 1 Hard Case
• 1 Rope Brush
• 1 Rubber Motor Protector
• 1 Clamping rubber band for fixing the brake lever in the reverse function
• 1 Pefect Burn Kit
- specifications
| Category: | Battery Powered Rope Ascender |
| Length (L): | 28,6 cm |
| Width (W): | 34,3 cm |
| Height (H): | 29,8 cm |
| Weight: | 9,15 kg |
| Construction: | 7075 Aluminum |
| Finish: | Powder Coat Black |
| Operating Temperature Range: | -4°F - 120°F (-20°C to +49°C) |
| Ingress Protection (IP): | IP54 |
| Battery Type: | 48 VDC Lithium Ion Rechargeable |
| Battery Life Ascent: |
2,4 min. non-stop with 159 kg load (91 m rope) 4,8 min. non-stop with 79 kg load (183 m Seil) |
| Battery Re-Charge Time: | ~ 2.5 hours |
| Rope Type: | 10 - 13 mm Kernmantle Static Rope EN 1891 |
| Rope Loading: | End Feed |
| Ascent Speed: | Variable (0.15 to 0.46 m/sec.) |
| Descent Method: | Gravity Feed with manual brake |
| Descent Speed: | 0,85 m/sec. with a maximum load of 181 kg |
| Climbing method: | single rope |
| Secondary Safety: | Secondary Lock Out Feature (Hands Free) |
| Max Working Load: | 181 kg |
| Product Certifications: | CE and ANSI |
| Reverse Functionality: | For Angled Ascents, winching applications, removing rope from the system |
