Ronin Shinobi Tactical (STL)
Part # 1011-14 APWR
Tactical lift device that will transform military and law enforcement operations worldwide. Ronin Shinobi Tactical Lift (STL) is not only suitable for special operations, but can also perform a wide variety of functions for use throughout your force.
The Ronin Tactical Lift can move heavy loads and/or people in difficult environments - all in an extremely compact size. Equip all of your units with the STL to enhance their operational capabilities.
Due to its higher ascent and descent speed, the STL is also interesting for rescue units. At the same time, this winch is extremely small and light in its performance class.
products contents

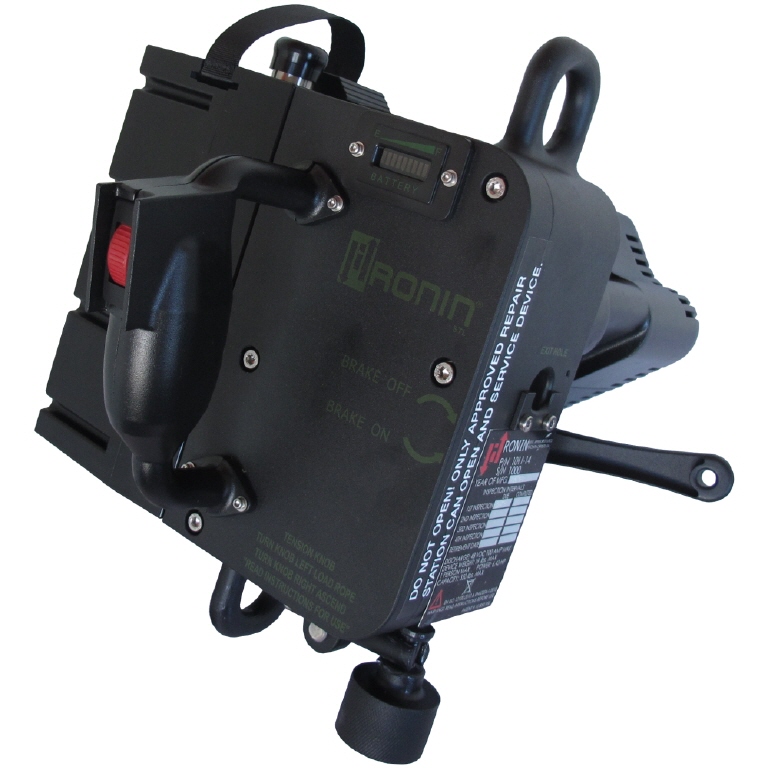

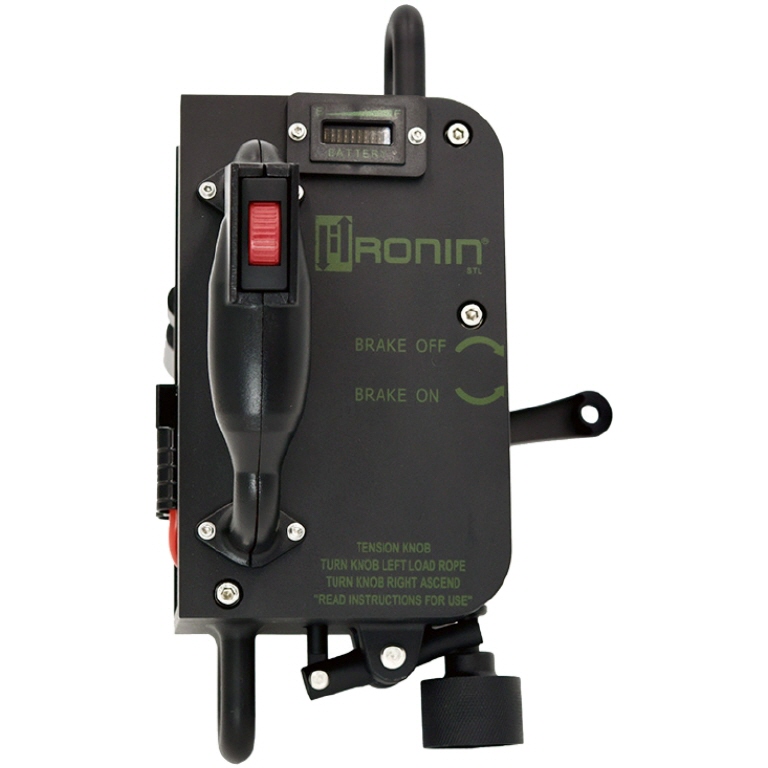

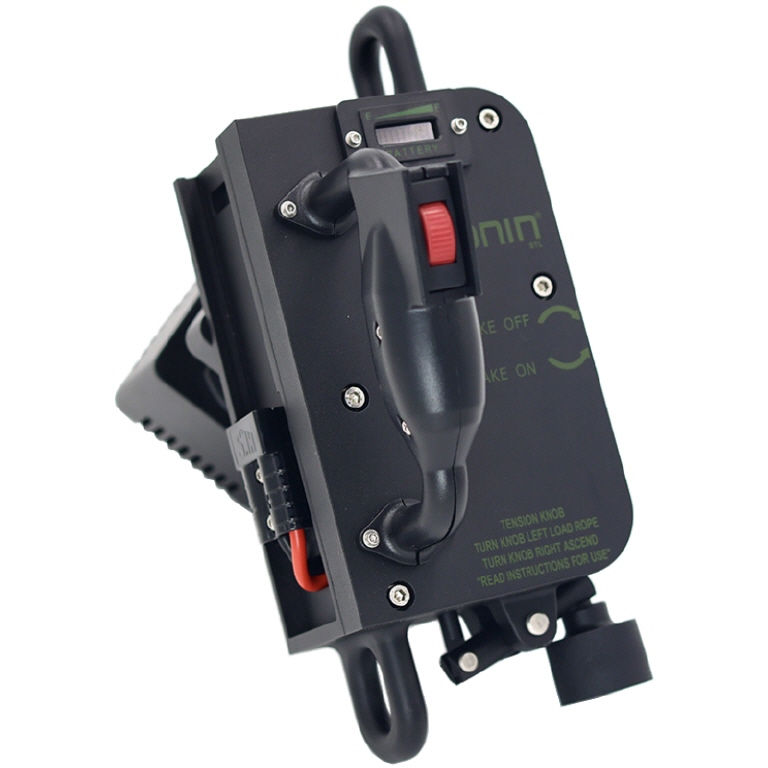

• 1 Ronin STL Ascender with Reverse Function and Anti-Panic Handle
• 1 Wireless Remote
• 1 Bollards at rope inlet and outlet opening
• 1 Li-Ion Battery
• 1 Charger 220 Volt

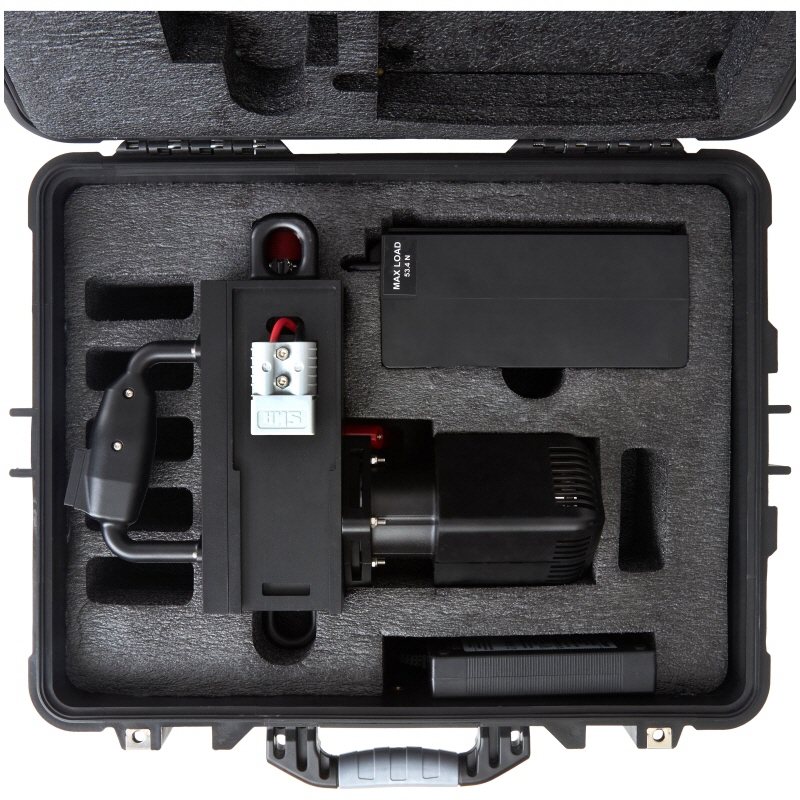

• 1 Hard Case
• 1 Rope Brush
• 1 Rubber Motor Protector
• 1 Clamping rubber band for fixing the brake lever in the reverse function
• 1 Pefect Burn Kit
- specifications
| Category: | Battery Powered Rope Ascender |
| Length (L): | 28,6 cm |
| Width (W): | 34,3 cm |
| Height (H): | 29,8 cm |
| Weight: | 9,15 kg |
| Construction: | 7075 Aluminum |
| Finish: | Powder Coat Black |
| Operating Temperature Range: | -4°F - 120°F (-20°C to +49°C) |
| Ingress Protection (IP): | IP54 |
| Battery Type: | 48 VDC Lithium Ion Rechargeable |
| Battery Life Ascent: |
2,4 min. non-stop with 159 kg load (91 m rope) 4,8 min. non-stop with 79 kg load (183 m Seil) |
| Battery Re-Charge Time: | ~ 2.5 hours |
| Rope Type: | 10 - 13 mm Kernmantle Static Rope EN 1891 |
| Rope Loading: | End Feed |
| Ascent Speed: | Variable (0.15 to 0.73 m/sec.) |
| Descent Method: | Gravity Feed with manual brake |
| Descent Speed: | 1,37 m/sec. with a maximum load of 159 kg |
| Climbing method: | single rope |
| Secondary Safety: | Secondary Lock Out Feature (Hands Free) |
| Max Working Load: | 159 kg |
| Product Certifications: | CE and ANSI |
| Reverse Functionality: | For Angled Ascents, winching applications, removing rope from the system |
